Ore Grinding Ball Mill

graphite ball mill

INQUIRY

Brief Introduction of graphite ball mill

1.Ball mill is the key equipment for grinding the materials,after the material was crushed.

2.It is widely used industrial production,is one of the powder grinding mills.

3.It has many kinds of ball mill,such as tube mill,stick ball mill,cement ball mill,horizontal ball mill,energy-saving ball mill,grid ball mill and so on. steel slag ball mill.

4.Ball mill is suited to grind all kinds of ore and other materials,it is devides into dry type and wet type.

Application of graphite ball mill

Application of graphite ball mill

Coarse crushing equipment for crystalline and amorphous graphite is the common jaw crusher. The middling and fine crushing equipment is a common cone crusher or hammer crusher. The grinding equipment uses the wet ball mill and the grid ball mill. The flotation equipment for graphite is the common JJF flotation cell, XCF flotation cell, and XJB flotation cell. The dewatering equipment of graphite is the common hydrocyclone or belt filter.

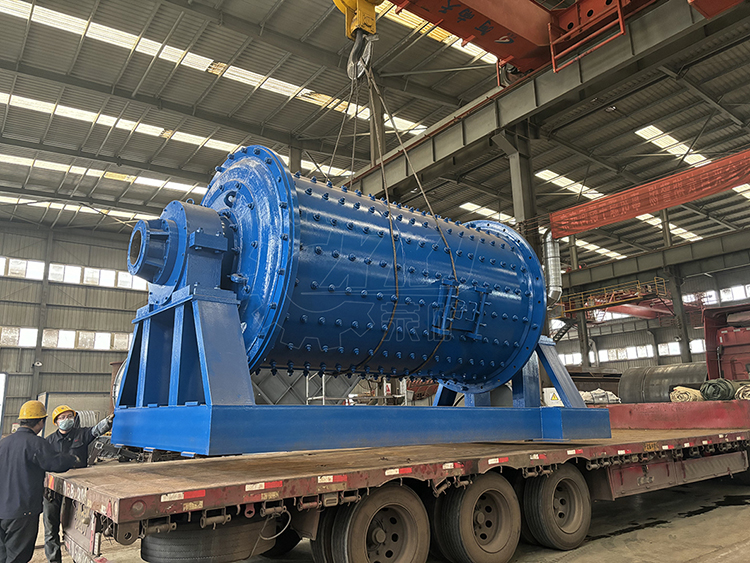

Factory photos OF graphite ball mill

Technical Data Of graphite ball mill

Model	Ball loading (t)	Feed size(мм)	capacity t/h	Performance engine power (kw)	Weight T
Ф1200×4500	6.5	≤25	1.4-2	45	13.1
Ф1500×5700	13	≤25	3.5-4.5	130	24
Ф1830×6400	21.6	≤25	5.5-6.5	210	38
Ф1830×7000	23.5	≤25	6-7	210	43
Ф2200×6500	31.5	≤25	8-10	380	50.2
Ф2200×7500	36	≤25	10-11	380	53.2
Ф2200×8000	39	≤25	10-12	380	55
Ф2200×9500	46	≤25	14-16	475	65
Ф2400×11000	64	≤25	19-21	680	99.2
Ф2400×13000	75.5	≤25	21-23	800	115.2
Ф2600×13000	122	≤25	28-32	1000	148
Ф3000×12000	109	≤25	32-35	1250	168.6
Ф3000×13000	118	≤25	34-37	1400	172.3
Ф3200×13000	185	≤25	45-50	1600	218
Ф3800×13000	189	≤25	60-62	2500	286
Ф4000×13000	231	≤25	85-87	3550	320
